SNP 1020 / 1030

Versatile and cost-effective emergency sign light

Versatile LED emergency sign edge light with frameless, free-hanging plastic pictogram disc.

  • Easily replaceable pictogram pane

  • Innovative lighting technology

  • Flexibility

Installation freedom with a system

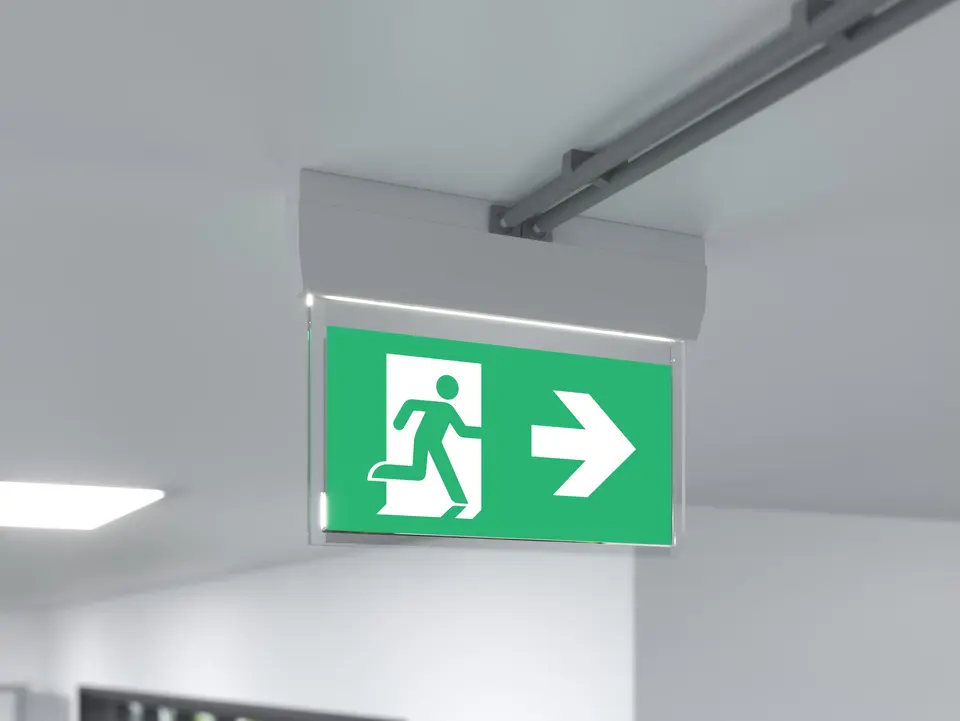

The SNP 1020 / 1030 shines with its versatility. This series offers a variety of mounting options. The combined wall and ceiling mounting, as well as the cable mounting, offer additional side cable entries that can be broken out, enabling variable and precise adaptation to different installation situations. This allows the luminaire to be installed flexibly in almost any structural environment – whether in new buildings or for retrofitting. For even greater installation freedom, an optional mounting adapter is available, which creates additional space for wiring and cable entry. This simplifies handling and reduces installation effort – especially in confined installation situations. In addition, the extensive range of accessories opens up further possibilities, such as wall bracket mounting, making the luminaire suitable for special requirements in corridors, stairwells or public areas. Finally, variants for continuous row lighting systems from well-known manufacturers are also available. For more information, see the chapter on luminaires for continuous row lighting systems.

Easy renovation with E-68mm

The SNP 1020 / 1030 excels in versatility. This series is available for special installation situations as an efficient and practical solution in the E-68mm version. This specially developed variant was designed specifically for installation in a standardised Ø 68 mm ceiling cut-out – a size that is widely used in many installation environments, especially in the renovation sector.

The E-68mm luminaire impresses with its time-saving and low-tool installation, which not only reduces installation time but also simplifies planning. The luminaire can be inserted directly and securely into the existing ceiling cut-out without any complex adjustments or additional fasteners. This makes it the ideal choice for renovations, retrofits or projects with clearly defined structural specifications – especially where efficiency, a precise fit and a high-quality lighting solution are required.

Flawless light with laser precision

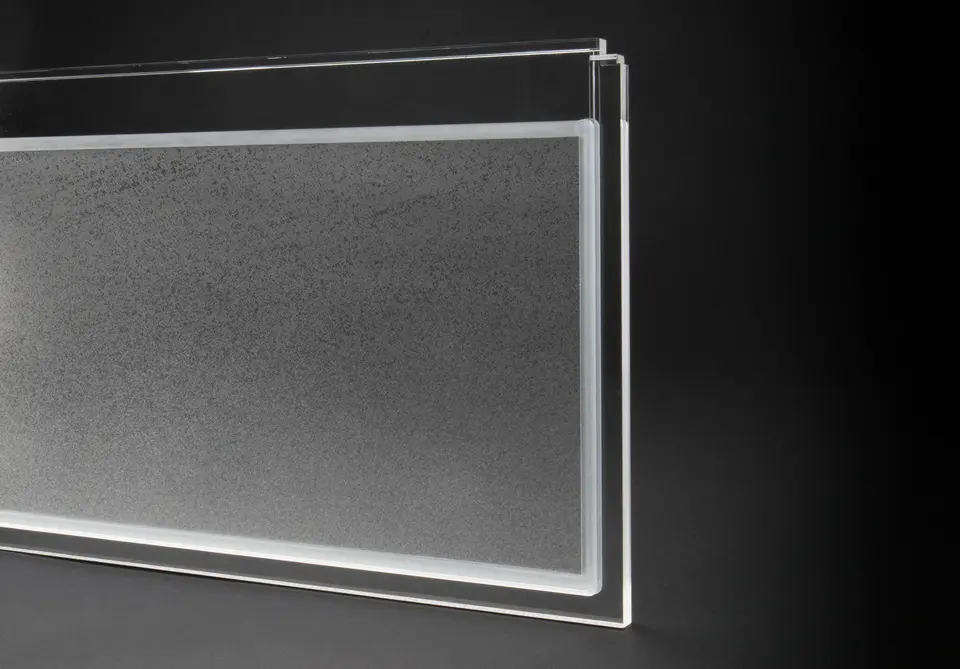

Our polycarbonate edge light uses sophisticated light guide technology to ensure particularly uniform and even illumination of the pictogram. A precisely applied laser structure within the acrylic disc distributes the light in a targeted and efficient manner. The result is uniform brightness across the entire surface – without hot spots or shadows, even at wider viewing angles.

Another well-thought-out feature is the insertable pictogram made of 0.75 mm thick Makrolon, which is characterised by its high dimensional stability and durability. The resistant screen printing used not only ensures clear symbols and precise contours, but also a particularly long service life – even with high UV exposure or cleaning.

The tool-free replacement of the pictogram also allows quick adaptation to changes in escape and rescue routes. The system thus actively contributes to permanently reliable and standard-compliant safety signage that meets the highest functional and visual requirements.
