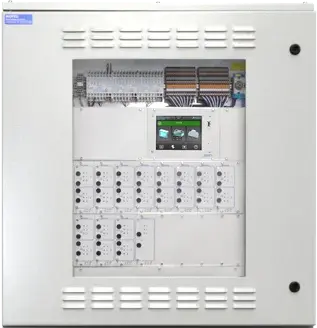

Central battery system CPS 220/48.1

The CPS 220 / 48.1 series covers various load requirements and housing sizes. Joker-Technology, individual lamp- and circuit monitoring are our standard. The maintenance-free central battery system includes automatic function monitoring and individual luminaire monitoring without additional data-line.

System features

  • Modular design, various enclosure sizes for main-, substations, battery-racks and battery enclosures
  • Up to 96 circuits (48 out of the main system/ 48 out of the substations with 20 addresses can be supplied
  • Low maintenance and service costs due to central monitoring of stations and all connected luminaires
  • Automated and manually releasing function test facility with logbook for status and failure information
  • Earth failure measurement and test facility
  • Isolation terminals for easy earth failure measurements
  • Galvanically isolated internal- and external bus-system
  • Sealed lead acid gas recombination OGI-batteries with >10 year design life
  • Seperated monitoring- and change-over devices for maintained-/non-maintained light
  • Patented "JOKER-Technology" function for mixed operation of maintained, non-maintained and switched luminaires on one line
  • switching- and monotoring mode adjustable individually per circuit

Network-compatible, graphics based controller

  • 5,7’’ TFT- Display
  • Intuitive, single button operation
  • Password protected programming
  • Integrated network connection interface (InoWeb)
  • USB-interface to
    • load / save the system configuration
    • load / save the circuit configuration (operation mode, monitoring depth, destination texts…)
    • connect a standard printer (PCL-compatible) or keyboard
  • Administration of up to 96 circuits (max. 1920 luminaires – 20 addresses per circuit)
  • Automatic function monitoring of system including individual luminaire- and circuit monitoring without additional data-line
  • Integrated logbook for central compilation and > 2 year storage of all system related data
  • Circuit-/luminaire function modes free programmable
  • Various languages available

Battery Control System (BCS)

By viewing this video you agree to loading content from youtube. Please see our privacy policy for details.

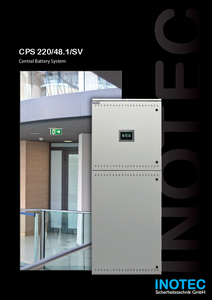

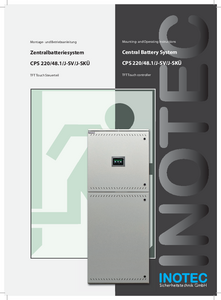

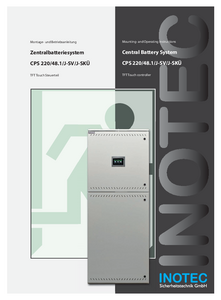

Download Standard documentation

You can download the standard documentation for the selected device here.

The download is restricted to order numbers (KA...), which have the device included.
