Central battery system CPS 220/64

The CPS 220/64 series covers various load requirements and housing sizes. Joker Technology, individual lamp- and circuit monitoring are our standards. The central battery system includes automatic function monitoring and individual luminaire monitoring without additional data-line.

System features

  • Modular design, various enclosure sizes for main-, substations, battery-racks and battery enclosures
  • Up to 128 circuits (64 out of the main system/ 64 out  of the substations) with 20 adresses can be supplied
  • Low maintenance and service costs due to central monitoring of stations and all connected luminaires
  • Automated or manually releasing function test facility with logbook for status and failure information
  • Earth failure measurement and test facility
  • Isolation terminals for easy earth failure measurements
  • Sealed lead acid gas recomination OGI-batteries with > 10 year design
  • Galvanically isolated internal- and external bus-system
  • Seperated monitoring- and change-ober devices for maintained-/non-maintained light
  • Patented "Joker-Technology" function for mixed operation for maintained, non-maintained and switched luminares on one line

Network-compatible, graphics based controller

  • 5,7" TFT-Touch-Display
  • Komfortable Programmierung über INOTEC Konfigurator Software
  • Integrierter Netzwerkanschluss (INOWeb/INOView)
  • USB-Schnittstelle zum
    - Aktualisieren der Steuerteilsoftware
    - Laden / Sichern der Gerätekonfiguration
    - Laden / Sichern der Stromkreiskonfiguration
    - Anschluss einer handelsüblichen Tastatur
  • Verwaltung von bis zu 128 Stromkreisen (bis zu 2560 Leuchten - 20 Leuchten je Stromkreis)
  • Vollautomatische Funktionsüberwachung einschließlich Einzelleuchten- und Stromkreis-Fehlererkennung ohne zusätzliche Datenleitung
  • Integriertes Prüfbuch
  • Frei programmierbare Schaltungsarten
  • Verschiedene Sprachen frei wählbar
  • Anzeige aller Batterieblockdaten bei Einbau des optionalen INOTEC Battery Control System (BCS)

Batterie Control System (BCS)

By viewing this video you agree to loading content from youtube. Please see our privacy policy for details.

The BCS-System

Downloads

Brochure
24 MB

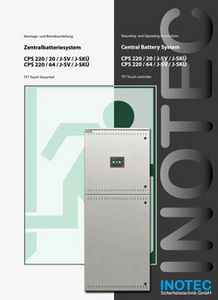

Manual
