SN 8424

Downlight for surface mounting on ceilings

INOTEC SN 8424 downlights are made of high-quality powder-coated die-cast aluminium. A highly efficient, latest-generation power LED combined with excellent thermal management ensures a lamp luminous flux of more than 160lm/W. The multi-chip LED used also offers greater safety. With INOTEC FUSION CPS and CLS emergency lighting devices, even the failure of a single chip can be detected.

  • Small design

  • Side cable entry possible

  • State-of-the-art lighting technology


Compact emergency luminaires with modern 24 V technology

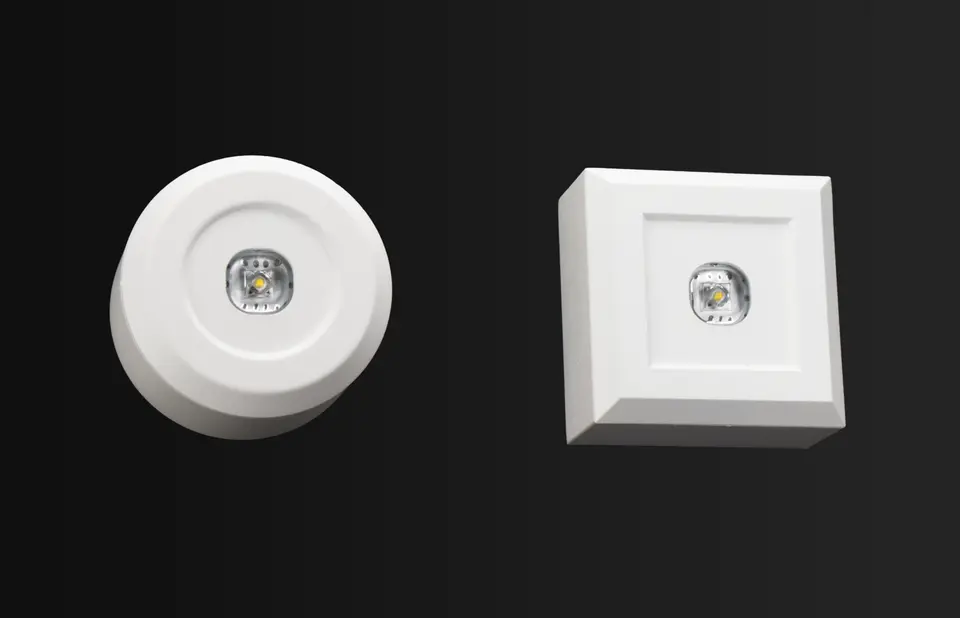

The SN 8424 emergency luminaires combine modern 24 V technology with an aesthetic, architecturally friendly design. Available in both round and square versions, they blend harmoniously into almost any room concept. With external dimensions of only 88 × 88 mm and an installation height of 41 mm, they remain inconspicuous without compromising on performance. The clear design emphasises the high-quality character of the luminaire and makes it an elegant solution for modern emergency lighting systems.

Flexible use thanks to side cable entry

Despite its compact housing design, the SN 8424 offers exceptionally flexible installation. Particularly noteworthy is the side cable entry, which can be implemented without additional accessories.
The side openings remain invisible during normal surface mounting, but can be quickly and easily exposed if necessary. This allows the luminaire to be optimally adapted to existing installation situations – ideal for renovations with visible cable routing. This adaptability enables a clean, professional installation and contributes to the luminaire's technical and visual appeal.

Optimal lighting for safety-related areas

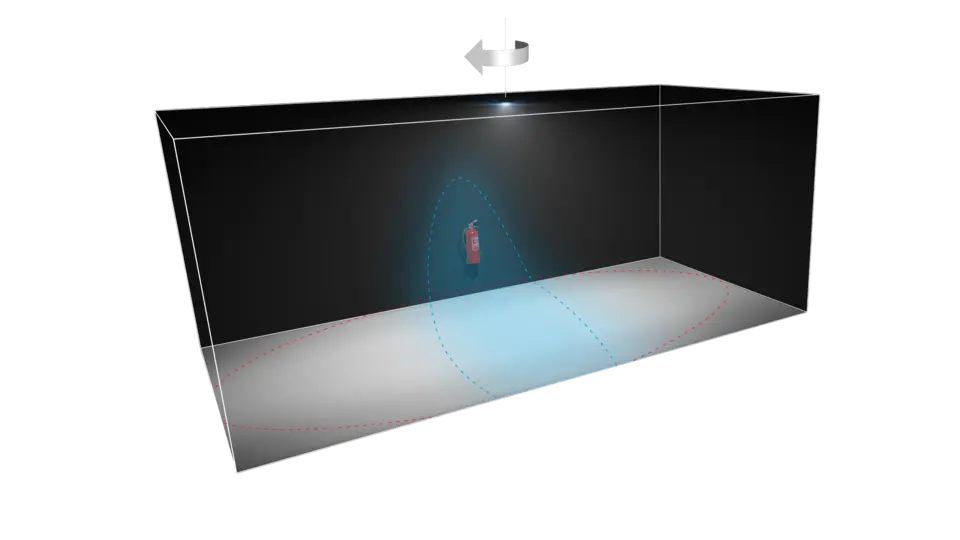

By rotating the asymmetrical SN 8424-12 AHB luminaire by 90°, the light distribution can be precisely adjusted to the requirements of safety-related areas. In addition to escape routes, first aid stations and firefighting and alarm systems can also be reliably illuminated in accordance with EN 1838. The standard specifies a minimum vertical illuminance of 5 lx for these areas in order to ensure clear visibility in an emergency. The flexible alignment of the luminaire helps to reliably meet these requirements and enable optimum orientation.
