SN 9400

Downlight for recessed ceiling installation

INOTEC SN 9400 downlights are made of high-quality powder-coated die-cast aluminium. A highly efficient, latest-generation power LED combined with excellent thermal management ensures a lamp luminous flux of more than 160lm/W. The multi-chip LED used also offers greater safety. With INOTEC FUSION CPS and CLS emergency lighting devices, even the failure of a single chip can be detected.

  • Low power consumption

  • Easy installation

  • State-of-the-art lighting technology

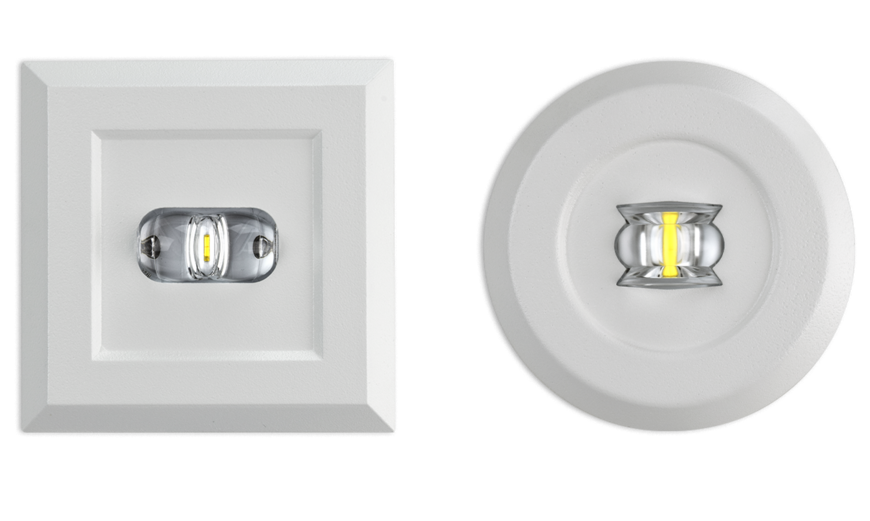

Harmonious design

With two diffuser shapes – round or square – the SN 9400 offers maximum flexibility for different architectural requirements. The simple, high-quality powder-coated aluminium housing blends harmoniously into a wide variety of ceiling designs, from modern and minimalist to classic and understated. With its clear design language and understated appearance, the luminaire remains visually unobtrusive while still adding high-quality accents that enhance the overall look of the room.

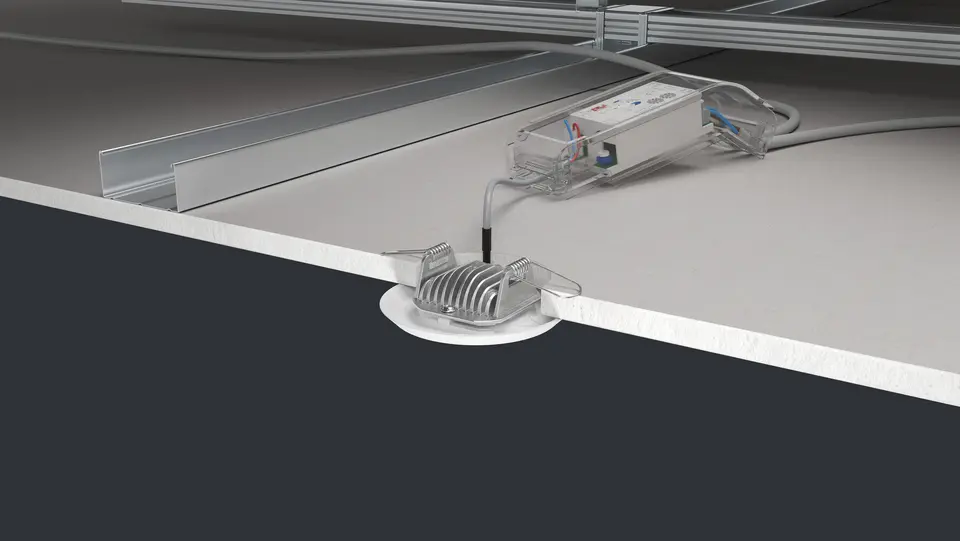

Tool-free installation made easy

The INOTEC LED driver can be installed directly into the ceiling – completely without tools, making it particularly convenient for the installer. The standard 68 mm ceiling cut-out serves as a proven standard and ensures smooth integration into existing installation processes. Once the driver has been mounted, the luminaire is simply inserted into the ceiling cut-out via its springs and securely fixed in place. The result: time-saving, reliable and professional installation that optimally combines efficiency and ease of use.

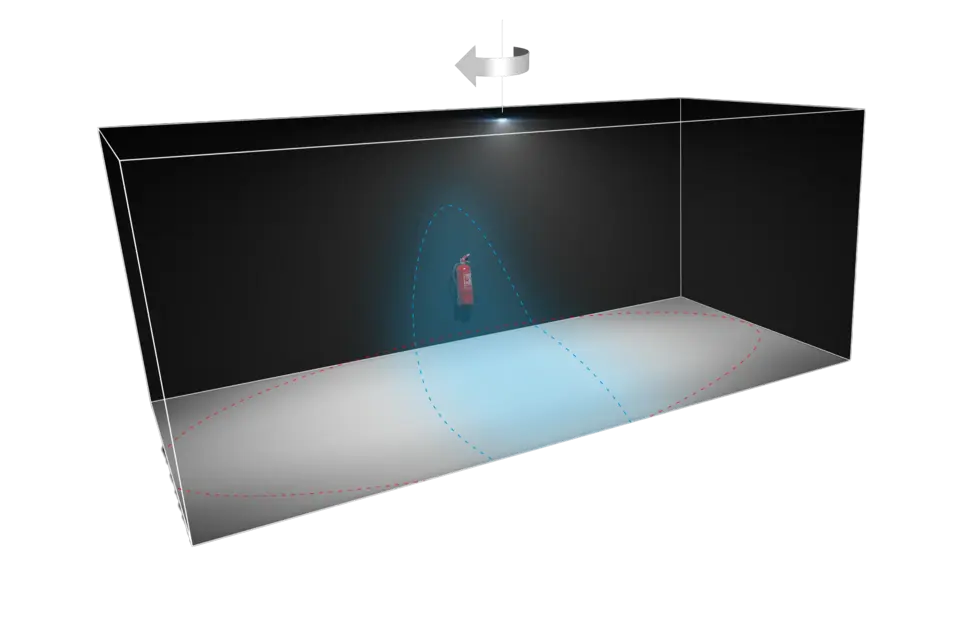

Optimal lighting for safety-related areas

By rotating the asymmetrical SN 9400-12 AHB luminaire by 90°, the light distribution can be precisely adjusted to the requirements of safety-related areas. In addition to escape routes, first aid stations and firefighting and alarm systems can also be reliably illuminated in accordance with EN 1838. The standard specifies a minimum vertical illuminance of 5 lx for these areas in order to ensure clear visibility in an emergency. The flexible alignment of the luminaire helps to reliably meet these requirements and enable optimum orientation.
