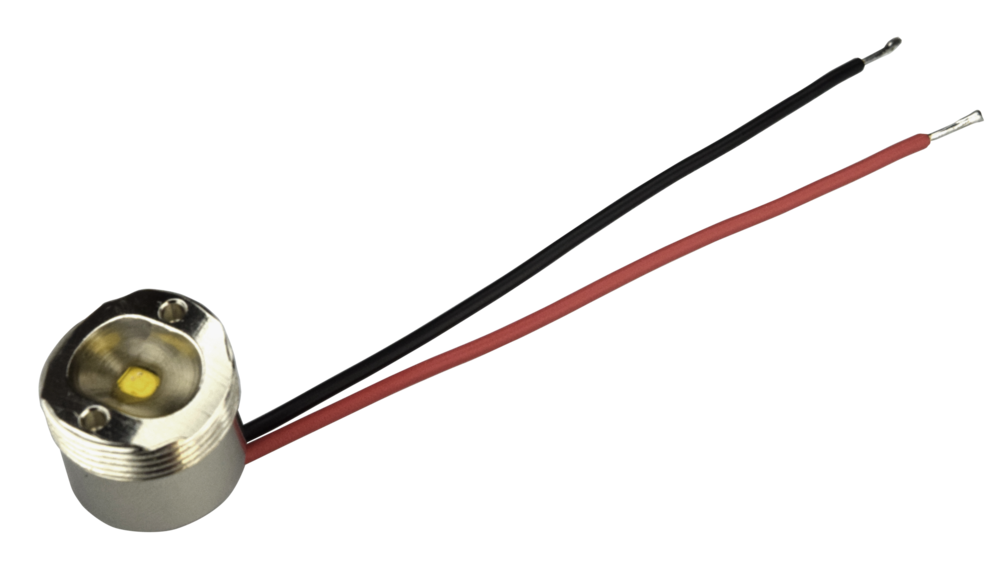

SN 6400-11 SLB LED 24V/S 4000 K
Art. no.: 101279619
LED safety light for installation in metal handrails, e.g. made of stainless steel or aluminium with a round cross-section of 38-52mm and a tube wall thickness of ≥ 1.5mm. Nickel-plated brass housing with high degree of protection IP66. Simple mounting in an M18x1 threaded hole. Luminaires for connection to external INOTEC LED drivers (230V or 24V). For easy installation, the required LED drivers can be accommodated in the "Installation box LED driver SKII IP66" (art. no. 101428755).
Technical details
| Protection class |
III |
|---|---|
| Illuminant |
replaceable max. 2W LED-module |
| Light colour |
4000 K |
| Protection category |
IP66 |
| Permitted temperature range |
-15...+40 °C |
| Light distribution |
Symmetric Low Bay |
| Input terminal |
max. 2.5 mm² single-core or max. 1.5mm² multi-core with ferrule |
| Nominal voltage DC |
24 V ±25 % |
