BN 2130 SV/B LED 1-8/D 6500 K
Art. no.: 101403291

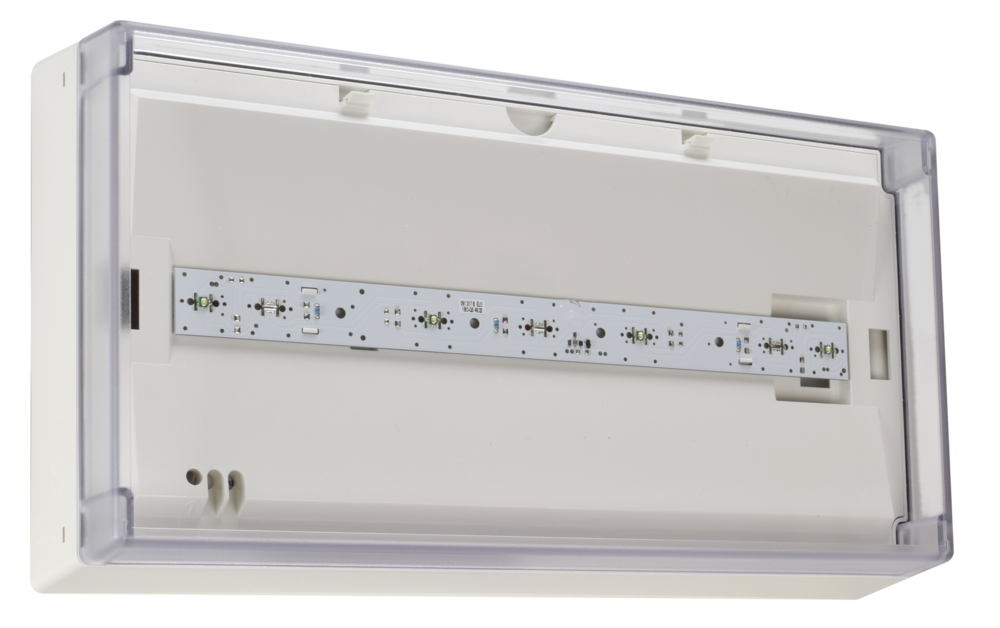

Universal LED downlight ideal for escape route illumination. UV resistant, heat filament tested polycarbonate housing with optional side cable entry and comfortable installation space.
Self-monitoring self contained LED luminaires incl. high-quality high-temperature cells.
Technical details
| Protection class |
II |
|---|---|
| Apparent power |
8.5 VA |
| Illuminant |
4 x 1W LED-module |
| Light colour |
6500 K |
| Protection category |
IP40 |
| Permitted temperature range |
M: -5...+35 °C, NM: 0...+40 °C |
| Mounting type |
ceiling mounting |
| Rated duration |
1h;1,5h;2h;3h;8h |
| Battery |
Ni-MH |
| Input terminal |
max. 2,5mm² single-core |
| Apparent power |
7.5 VA |
| Battery capacity |
1.1 Ah |
| Nominal voltage AC |
230V AC ±10% 50/60 Hz |
Distance table
